Coded light cameras from Intel in various 3D imaging configurations all take advantage of versatile close‑range depth sensing.

Coded Light

Coded light cameras from Intel in various 3D imaging configurations all take advantage of versatile close‑range depth sensing.

Intel RealSense D435i with an IMU

INTEL® REALSENSE™ DEPTH CAMERA d435i. MAKES NEW SENSE.

Announcing the Intel® RealSense™ D435i depth camera, which combines the robust depth sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU).
Pre-order now  Learn more



Versatile Subassembly

Coded light projects a known pattern onto a scene and evaluates how this pattern deforms on surfaces. Through deformation analysis, vision systems calculate the depth and surface information of objects. Applications include: face analytics and tracking, scanning and mapping, scene segmentation, hand and finger tracking and augmented reality.

SR300

The Intel® RealSense™ Camera SR300 module is a subassembly product built on a short-range, coded light 3D imaging system.

Download PDF Contact us

Features & Applications

With a broad range of 3D mode configurations and synchronization capabilities, the SR300 provides an optimal solution for a wide range of 3D imaging applications—particularly facial recognition.

3D Image Capture & Segmentation

The Intel® RealSense™ Camera SR300 is ideal for digital home assistant-like products that incorporate photo capabilities.

Gesture Control

Built for gesture recognition and control, the Intel® RealSense™ Camera SR300 enables interaction with both flat and multi-dimensional displays.

Gesture Control

Built for gesture recognition and control, the Intel® RealSense™ Camera SR300 enables interaction with both flat and multi-dimensional displays.

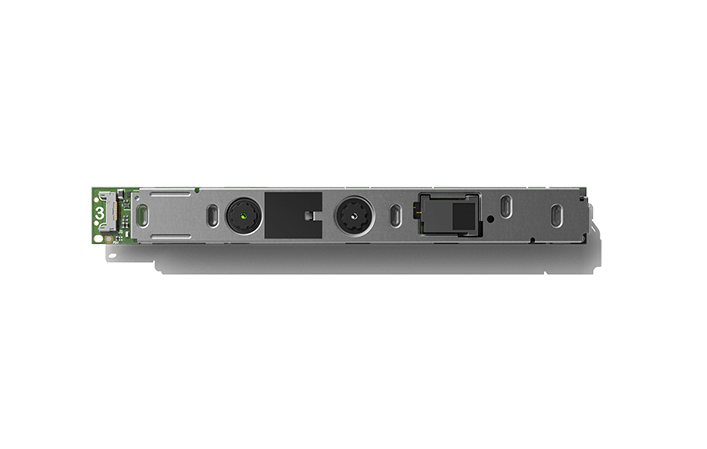

Intel® RealSense™ Depth Module SR300

This small subassembly product is built on a short-range, coded light 3D imaging system that offers flexibility for diverse product applications.

SR300
Module

Intel® RealSense™
Depth Module SR300

Depth stream up to 60 frames per second (FPS)

Optimal distance between 0.2m & 1.5m

Full 1080p resolution color camera

Use Environment
Indoor

Supported operating system
Windows 10®

Recommended CPU
6th generation Intel® processor or newer

Depth range
Approximately 0.2m to 1.5m (software optimized in this range)

I/O connectivity
USB 3.0

Onboard imaging
ASIC

Depth Capture
0.2 to 1.5m

Infrared (IR)
Laser Projector System

Texture mapping of depth to color

Up to 60FPS Depth at 640×480 (VGA)

Up to 30FPS Color at 1920×1080 (FHD)

Up to 200FPS Infrared at 640×480 (VGA)

110mm Width x 12.6mm Height

4.1mm Maximum thickness (3.8–4.1 mm)
